Home > Seismic Spring Isolators SM > Seismic spring isolators SM1 rated load 700lbs 318Kg color black

Seismic spring isolators SM1 rated load 700lbs 318Kg color black

Model #:	SM1-700
Product Name:	Seismic spring isolators SM1 rated load 700lbs 318Kg color black
Availability:	In Stock

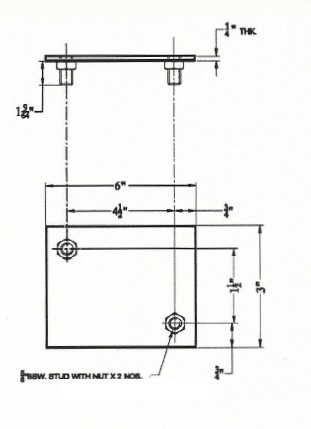

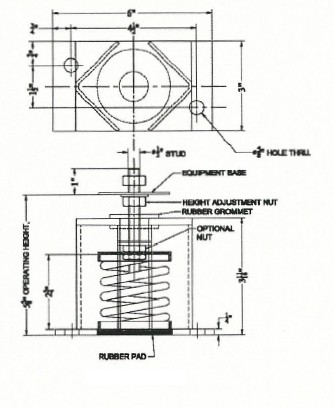

See complete description below:	Housing - Fabricated using solid steel. Springs - Made from spring steel, zinc electro plated / powder coated. Incorporated with leveling device. Load capacity ranging from 50 to 700 Lbs. Provided with anti-skid rubber pads. Color coded springs for easy and quick identification. *Supplied with base plate for installation.



Click thumbnails to enlarge images

Qty :

Application: Used for wide range of HVAC equipments such as compressors, air handling units, fans, pumps and chillers etc.

note

*Research and development is a continuous process with us, as improvements are made from time to time, specifications / dimensions may change without notice. *Tolerances in dimensions are as per international standards.
