*Vibracan housing spring mounts are made of high quality steel casting.
*Springs are made from high quality and heavy spring steel.
*The castings are powder coated with proper treatment for rust prevention.
*Springs too are powder coated for rust prevention and also color coded for easy identification.
*Anti skid rubber is provided at the bottom of housing for grip. Rubber lining inside to prevent metal to metal contact and smooth functioning.
-
|
*Vibracan spring hangers are fabricated using heavy duty steel.
*Springs are made from high quality and heavy spring steel.
*Springs are powder coated with color code for easy identification.
*Special rubber washers are provided for uniform distribution of load.
-
|
*Suitable for Mounting on Floor.
*Ribbed / Non skid design used for providing grip with the surface. But it is recommended to fasten the product for better results.
*Steel re-enforced Rubber for better strength.
*Threading provided at top for fastening.
*Material: EDPM Neoprene.
*RMD3 and RMD4 are rectangle base type.
-
|
|
*Design allows for easy cutting.
*Simple field installation.
*Pattern: Ribbed.
*Working range for RP-18: 15 to 55 PSI.
-
|
*Simple field installation.
*Waffle Design: In-built suction cups.
*No bolting required.
*Waffle pattern provides superior vibration attenuation.
-
|

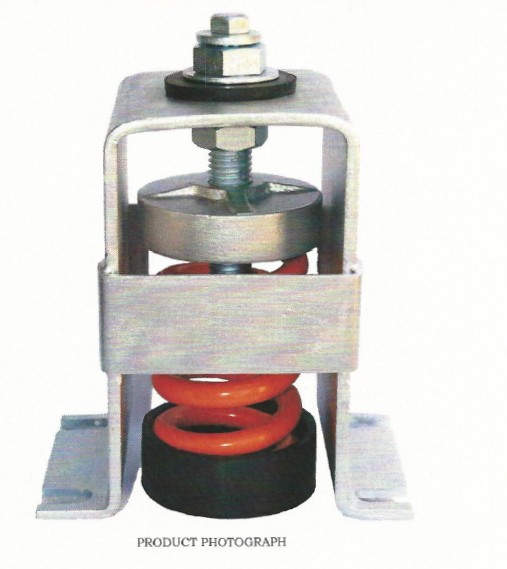

*Vibracan spring hangers are fabricated using heavy duty steel.
*Springs are made from high quality and heavy spring steel.
*Springs are powder coated with color code for easy identification.
*Special rubber washers are provided for uniform distribution of load.
-
|
|

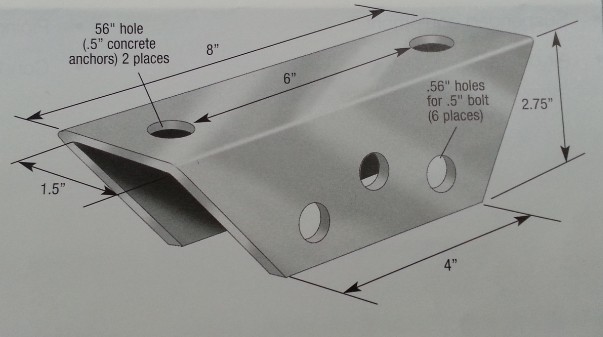

SAB-1 Series is single arm brace spacing guide - 0.5G.
SAB-1 Series is for equipment and steel structure attachment.
*T:Transverse.
*L:Longitudinal.

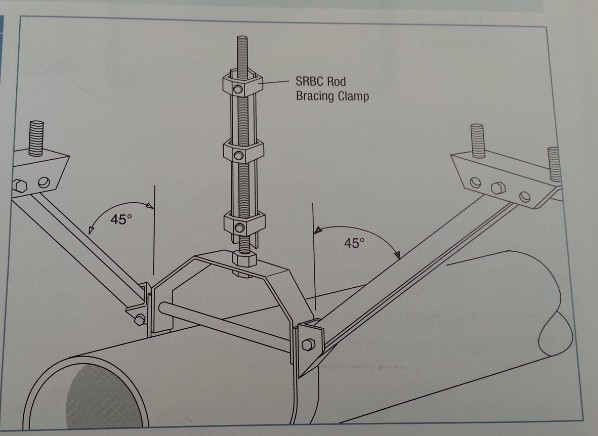

The Seismic Restraints Series are seismic rod bracing clamps used as additional support for bracing threaded rods used to suspend piping, ducts, conduit and other HVAC equipment.
-
|
*Maximum load: 60 lbs/ inch2 ; deflection: 0.21 inch.
*Multi-layers ribbed rubber pads separated by steel plate for uniform load distribution.
*No bolting required.
*Simple field installation.
*Multi-layers are recommended where vibration and noise control is required.
-
|
SAB-2 Series is single arm brace spacing guide - 1G.
SAB-2 Series is for concrete anchorage.
*T:Transverse.
*L:Longitudinal.
The Seismic Restraints Series are seismic rod bracing clamps used as additional support for bracing threaded rods used to suspend piping, ducts, conduit and other HVAC equipment.
-
|
